Flat Busbar include copper busbar or aluminum busbar. It is solid and have smooth plated or bare surface. It can also be claded with heat shrink tube, insulated epoxy powder or dipping PVC. It is use in power charger, machines and equipments.

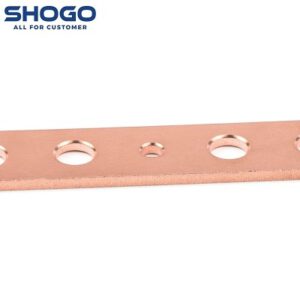

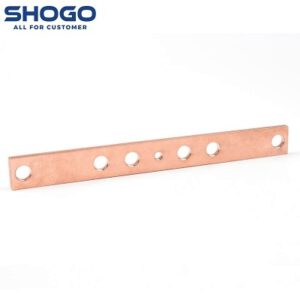

Insulated Coating Tinned Solid Copper Busbar Connector
- Copper Busbar Connector is made of T2 copper material, which is 99.9% copper contented. It capitals the products excellent conductivity with less impurities.
- The surface of insulated coating tinned copper busbar connector is plated with tin to protect copper busbar from oxidation or creating aerugo. Other plating like nickel or silver is also acceptable as customer requirments. Clean and free-from-burr holes make sure good contact of bolts and busbar
- The copper busbar is coated with 2:1 PE heat shrink tube. They can also coated with 4:1 heat shrink tube, soft PVC dipping or epoxy powder coating. They have have different insulation degree.
- Copper Busbar is shaped with electrical wiring cut from whole copper plate or cut from available copper bars if the width and thickness is normal.
How can you know the sizes of copper busbar you need?
Referring to the current form, you can choose the suitable width and thickness you need, whose current capacity should at least equal the current you used in. It would be better to choose the sizes with higher current capacity to control the temperature raise of busbar in using. Then You can confirm the hole center distance by measuring the screw center in actual use in equipments.
Then you can send the basic datas according to the drawing offerd as a normal flat copper busbar. Quotation will be send wit datas you offers.
1. Improve equipments properity
Copper busbar can reduce the resistance and lower consumption. Copper busbar is capable of steady current carrying capacity and voltage-sharing.
2. Easy to install, examine and maintain
Copper busbar can be installed with simple tools. Anyone can use it with bolts, nut and screwdriver. The workers examine the property with tester.
3. Reduce cost
Copper busbar increase the serve-life of machines and equipments. Good quality T2 copper material can lower the temperature raise and loss of equipments parts.
We are specialized in copper and aluminum busbar that is applied in battery, energy storage system & electric vehicles.
Electric vehicles like hybrid battery car, electric golf car, electric logistic vehicle, electric bus, high-speed rail, electric forklift etc.
We supply directly to many battery pack companies and energy storage companies like solar energy household storage projects in UK, Americal, Australia etc. offering solutions for their battery connecting. They use both flexible and solid copper busbar to meet different design and application requirments.
